What are the number settings on a drill?

The numbers on a drill driver refer to the amount of torque the drill will apply to a fastener (usually a screw) and once that torque setting is reached, the drill will stop turning/driving the fastener.

What torque should drill be on?

Newton Metres (Nm) on drills:

4 to 15Nm is fine for all of those smaller screw driver tasks around the home. 15 to 35Nm is a great all-rounder to drill and drive medium sizes screws and hole drilling. 35Nm upward will tackle all of those more serious project with bigger screws and holes.

What do the torque numbers on a drill mean?

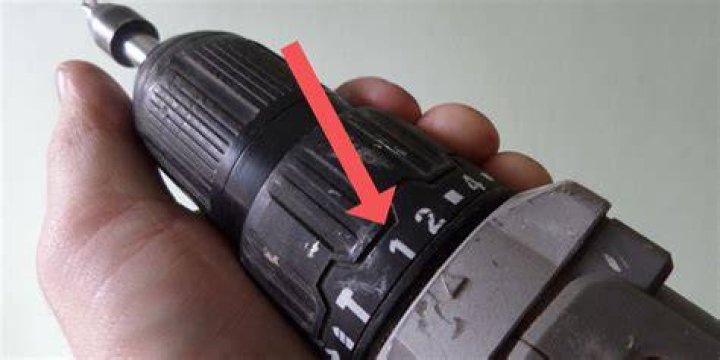

You'll see a list of numbers from 1 to 10 or 20. These are used to set the clutch to deliver a torque range. The higher the number on the collar, the higher the torque and the larger the fastener that can be driven. To adjust your clutch, align the arrow to a lower setting and start driving a screw.

How do I choose my drill speed?

Determining Drill Speed

Determine the size of the hole you need to drill into the material. Decide what is more important: getting the job done faster or preserving the life of the drill bit. Begin on a slow RPM setting and test out the bit. ALWAYS (especially at high speeds) pay attention to the material.

CORDLESS VS. CORDED DRILLS--What Are The Numbers For?! (Clutch Control / Slip Clutch / Torque Drill)

What are the torque settings on a Dewalt drill?

One drill is rated at 400 in-lbs max and with 0-400/0-1500 RPM speed settings, and another at 380 in-lbs max torque, with 0-550/0-2000 RPM speed settings.

What is a high torque drill?

High torque drills are basically low-geared rotary drills that are hence capable of producing a large mount of torque. This huge turning force enables them to perform tasks such as mixing paint and plaster, and boring huge holes through wood and thick metal.

What does 8 mean on a drill bit?

Numbered drill bit gauge sizes range in ascending order from 80 (smallest) to 1 (largest). Thus, drill bit #8 is on the larger side of your standard drill set. Here we will give you drill bit #8 in decimal inches, drill bit #8 in fractional inches, and drill bit #8 in decimal millimeters (mm).

How much torque does a cordless drill have?

How much torque does an average cordless drill have? As mentioned earlier, the torque of an average cordless drill goes up to 10 or 20. Whatever drill you own, the number sequence is quite similar and typical. They all work in the same manner, no matter the maximum torque level.

What is hard and soft torque?

So, the difference between hard torque and soft torque is this: Hard torque is how much the driver will produce when you're working with hardened fasteners and materials like stainless steel. Soft torque is the maximum torque you get when you're working with softer materials, like pine.

What setting to use to drill into brick?

Top Tips to Remember When Drilling Into Brick

1. When drilling brick, ideally you want to use the slowest possible speed that will get the job done.
2. For soft masonry, use the slowest speed setting and don't turn on the hammer action, but for hard masonry, choose a slightly faster speed and activate hammer action.

What speed should your drill be set at to drill a hole in wood?

The best speed for drilling wood depends on the diameter of the bit and the material drilled. Larger diameter bits require a slower speed, as do hardwoods. Drilling into softwood with a twist drill bit up to 3/8″ in diameter requires a speed of 3000 RPM, while the same bit with hardwood requires 1500 RPM.

What speed should your drill be set at to drill a hole in metal?

Drill at a Slow Speed

Hard metals like steel and larger drill bits require even slower speeds. With a small twist bit (1/16 in. to 3/16 in.), you can drill through most metals at 3,000 rpm. For larger twist bits (11/16 in. to 1 in.), 350 to 1,000 rpm is recommended.

Can you drill too slow?

This causes a lot of friction, which overheats the drill bit and makes it dull. If you run the drill too slow, it will just take longer to cut. GO SLOW! You will ruin all your drill bits if you use a drill that has only one speed.

How much torque does a impact drill have?

Generally speaking, an impact driver with 1500–1800 in-lbs that puts more emphasis on higher RPM will do 95% of the work faster than one with more torque and slower speeds. Our rule of thumb: If you need to reach for a socket adapter, you're better off grabbing an impact wrench!

What's more powerful 18v or 20V?

A lot of people tend to get confused when considering whether to buy the 18V or 20V drill. For most people the choice comes down to the one that seems to be more powerful. Of course 20v Max sounds like it packs a lot of power but the truth is that the 18v is just as powerful.

What makes a drill more powerful?

The higher the voltage rating is, the more powerful the drill. Battery sizes typically range from 12V to 20V.

Do corded drills have more torque?

On average, cordless drills appear to have a higher maximum torque than corded drills. In truth, most corded drills have a low maximum torque rating (around 40 nm), and I don't believe I've ever seen one with a 135nm (Milwaukee cordless 18v) or 136nm (Hitachi cordless 18v) rating.
